Air duct - set for bonnet, black
Product Information:
Philosophy
Free from the compromises of series production, AC Schnitzer develops custom components to the highest standard of perfection.
“Form follows function“ - This guiding principle is systematically applied by the engineers and designers of the aerodynamic components for BMW vehicles.
AC Schnitzer aerodynamic components pick up and subtly emphasise the styling lines of the base vehicle, while giving the body striking new contours.
At the same time however, they have a real effect: They improve the air situation in the engine compartment.
Only high quality composite materials, such as PU Rim or carbon, are used in production of our AC Schnitzer aerodynamic components. Because only these materials meet our high quality standard.
Material: Carbon Fibre Reinforced Plastic
Carbon-fibre-reinforced plastic - or carbon for short - has a unique quality. Carbon is ultralight, but at the same time extremely rigid. These properties explain why this material has become essential in motorsport and aerospace technology.
However the fibres are expensive and complex to produce. Fibres are spun into thick threads known as rovings, which are woven into textile-like fibre mats.
These are then impregnated with different plastics in a further step, at which point the material becomes very fragile. Even slight stretching will lead to irreparable distortion in the texture and make the product unusable. Working only by hand, skilled craftsmen can make this ultra-delicate fabric into complex shapes. Such a work process requires extensive experience and fingertip feel.
When the components have been hardened in the autoclave, the surface is lacquered. This is a very sophisticated process because of the many indentations in this fabric-like structure. So the flawless surface finally reflects one factor above all: perfection down to the lowest fibre.
Creative Design
PUR or Carbon: at AC Schnitzer, all draft designs originate from a true Italian artist: Michele Viandante, who has been Head Designer here for many years. Naturally his designs are not only beautiful but must prove their suitability: for example, many parts are function-tested in the wind tunnel.
Testing
If the calculations match the results, further tests follow. For example, crash tests using dummies confirm that pedestrian protection requirements are fulfilled. Only when all tests have been passed and the homologation certificate has been issued are AC Schnitzer aerodynamic components released for sale worldwide.
Expert Opinion
The approval of AC Schnitzer special parts for road traffic is a central goal for us when developing new components. This is also decisive for the development of new aerodynamic components. However, some parts are not subject to approval. We have had an expert opinion prepared for such parts. This serves to prove that the corresponding part complies with the regulations and states that no risk is to be expected when the part is installed as intended, which is why the part can be used without restriction. Acceptance of the installation or mounting is not required. According to § 19, para. 2 StVZO the operating permit of the vehicle does not expire.

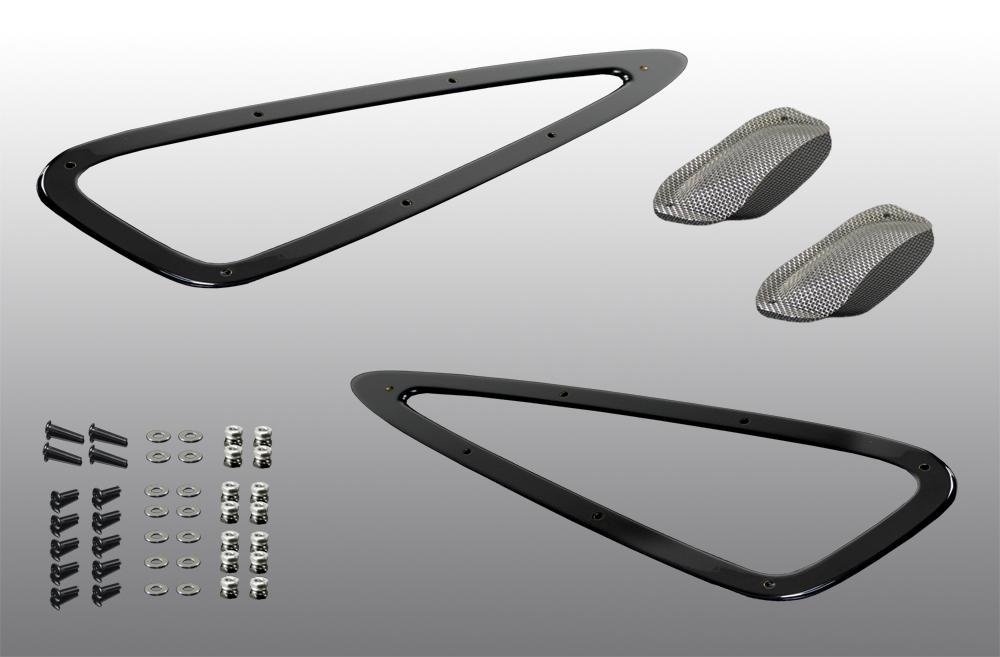

Scope of delivery:
- carbon inserts, set
- chrome frames black, set
- AC Schnitzer sticker, silver
- vehicle specific mounting package
- mounting instructions
- homologation certificate

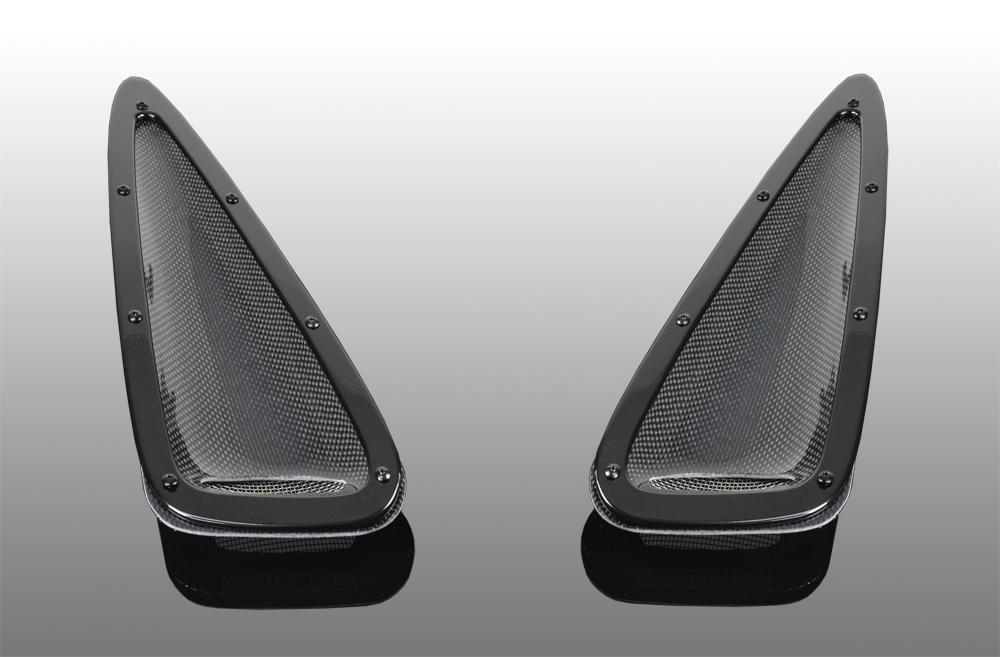

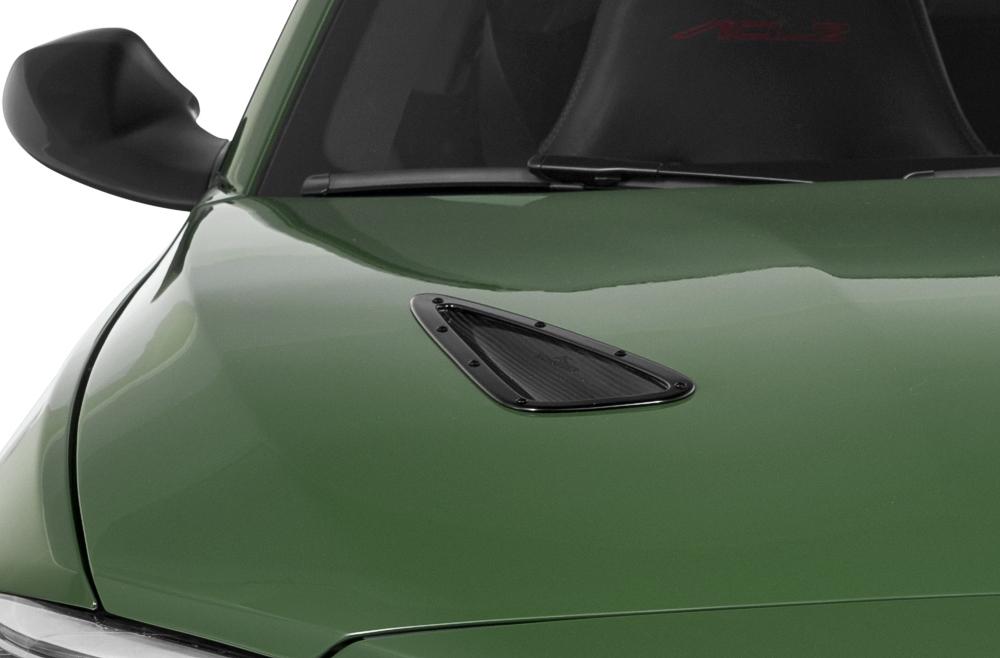

Uniqueness of the Carbon Bonnet Vents
- carbon air outlets for engine compartment ventilation
- multipiece carbon insert set
- lightweight construction
- very high strength
- Made in Germany
- made of Carbon
- sporty design
- triangular shaped air outlets
- long lasting
- developed exclusively for BMW X5 (F15)
- 2 years warranty
- optional: design elements for Bonnet Vents
